XWN VA
Норма:
DIN 2353,ISO 8434-1
Комплект поставки:
Штуцер (без накидной гайки и режущего кольца)
Конструкция:
Угол 90°
Материал:
нержавеющая сталь
Модель:
Ввертное резьбовое соединение
Соединение 1:
Наружная резьба NPT
Соединение 2:
Метрическая наружная резьба, цилиндрическая
Форма уплотнения 1:
Резьбовое уплотнение
Форма уплотнения 2:
Внутренний конус 24°
И наши менеджеры свяжутся с Вами в ближайшее время!

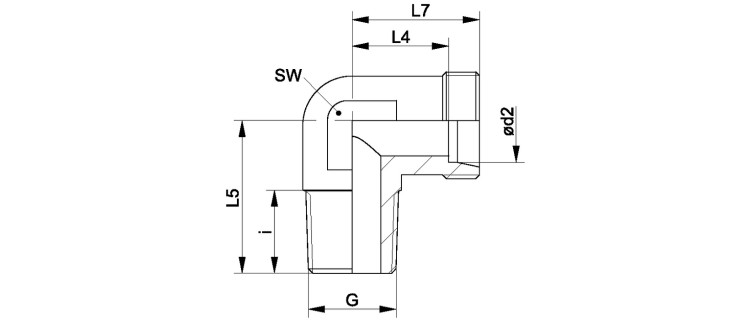

Ввертное резьбовое соединение, угол 90°
| Наименование | Серия | Наружный Ø трубы mm |
Betriebsdruck | G | i mm |
L4 mm |
L5 mm |
L7 mm |
SW mm |
|---|---|---|---|---|---|---|---|---|---|
| XWN 04 LL VA | LL | 4 | PN 100 | 1/8" -27 NPT | 8.0 | 11.0 | 17.0 | 15.0 | 9 |
| XWN 06 LL VA | LL | 6 | PN 100 | 1/8" -27 NPT | 8.0 | 9.5 | 17.0 | 15.0 | 9 |
| XWN 08 LL VA | LL | 8 | PN 100 | 1/8" -27 NPT | 10.0 | 11.5 | 20.0 | 17.0 | 12 |
| XWN NW 04 HL VA | L | 6 | PN 315 | 1/8" -27 NPT | 10.0 | 12.0 | 20.0 | 19.0 | 12 |
| XWN NW 04 HL 1/4 VA | L | 6 | PN 315 | 1/4" -18 NPT | 12.0 | 14.0 | 26.0 | 21.0 | 12 |
| XWN NW 04 HL 3/8 VA | L | 6 | PN 315 | 3/8" -18 NPT | 15.3 | 12.0 | 28.0 | 19.0 | 14 |
| XWN NW 04 HL 1/2 VA | L | 6 | PN 315 | 1/2" -14 NPT | 17.0 | 23.0 | 34.0 | 30.0 | 19 |
| XWN NW 06 HL 1/8 VA | L | 8 | PN 315 | 1/8" -27 NPT | 10.0 | 14.0 | 20.0 | 21.0 | 12 |
| XWN NW 06 HL VA | L | 8 | PN 315 | 1/4" -18 NPT | 12.0 | 14.0 | 26.0 | 21.0 | 12 |
| XWN NW 06 HL 3/8 VA | L | 8 | PN 315 | 3/8" -18 NPT | 15.2 | 11.5 | 20.0 | 18.5 | 12 |
| XWN NW 06 HL 1/2 VA | L | 8 | PN 315 | 1/2" -14 NPT | 17.5 | 15.0 | 26.0 | 22.0 | 12 |
| XWN NW 08 HL 1/8 VA | L | 10 | PN 315 | 1/8" -27 NPT | 10.0 | 15.0 | 22.5 | 22.0 | 14 |
| XWN NW 08 HL VA | L | 10 | PN 315 | 1/4" -18 NPT | 14.0 | 15.0 | 27.0 | 22.0 | 14 |
| XWN NW 08 HL 3/8 VA | L | 10 | PN 315 | 3/8" -18 NPT | 15.2 | 15.0 | 27.0 | 22.0 | 14 |
| XWN NW 08 HL 1/2 VA | L | 10 | PN 315 | 1/2" -14 NPT | 20.0 | 21.0 | 34.0 | 28.0 | 19 |
| XWN NW 10 HL 1/4 VA | L | 12 | PN 315 | 1/4" -18 NPT | 14.0 | 17.0 | 28.0 | 24.0 | 17 |
| XWN NW 10 HL VA | L | 12 | PN 315 | 3/8" -18 NPT | 12.5 | 17.0 | 28.0 | 24.0 | 17 |
| XWN NW 13 HL 3/8 VA | L | 15 | PN 315 | 3/8" -18 NPT | 13.0 | 21.0 | 34.0 | 28.0 | 19 |
| XWN NW 10 HL 1/2 VA | L | 12 | PN 315 | 1/2" -14 NPT | 19.0 | 23.0 | 34.0 | 30.0 | 19 |
| XWN NW 13 HL VA | L | 15 | PN 315 | 1/2" -14 NPT | 18.5 | 21.0 | 34.0 | 28.0 | 19 |
| XWN NW 16 HL 3/8 VA | L | 18 | PN 315 | 3/8" -18 NPT | 15.3 | 23.5 | 31.0 | 31.0 | 24 |
| XWN NW 16 HL VA | L | 18 | PN 315 | 1/2" -14 NPT | 20.0 | 23.5 | 36.0 | 31.0 | 24 |
| XWN NW 16 HL 3/4 VA | L | 18 | PN 315 | 3/4" -14 NPT | 18.5 | 23.5 | 40.0 | 31.0 | 24 |
| XWN NW 20 HL 1/2 VA | L | 22 | PN 160 | 1/2" -14 NPT | 20.0 | 27.5 | 42.0 | 35.0 | 27 |
| XWN NW 20 HL VA | L | 22 | PN 160 | 3/4" -14 NPT | 18.5 | 27.5 | 42.0 | 35.0 | 27 |
| XWN NW 25 HL 3/4 VA | L | 28 | PN 160 | 3/4" -14 NPT | 20.0 | 30.5 | 44.0 | 38.0 | 36 |
| XWN NW 25 HL VA | L | 28 | PN 160 | 1" -11.5 NPT | 24.0 | 30.5 | 48.0 | 38.0 | 36 |
| XWN NW 32 HL VA | L | 35 | PN 160 | 1.1/4" -11.5 NPT | 25.5 | 34.5 | 54.0 | 45.0 | 41 |
| XWN NW 40 HL VA | L | 42 | PN 160 | 1.1/2" -11.5 NPT | 26.0 | 40.0 | 61.0 | 51.0 | 50 |
| XWN NW 03 HS VA | S | 6 | PN 630 | 1/4" -18 NPT | 12.0 | 16.0 | 26.0 | 23.0 | 12 |
| XWN NW 03 HS 3/8 VA | S | 6 | PN 630 | 3/8" -18 NPT | 15.3 | 16.0 | 28.0 | 23.0 | 14 |
| XWN NW 03 HS 1/2 VA | S | 6 | PN 630 | 1/2" -14 NPT | 20.0 | 16.0 | 34.0 | 23.0 | 19 |
| XWN NW 04 HS VA | S | 8 | PN 630 | 1/4" -18 NPT | 15.0 | 17.0 | 27.0 | 24.0 | 14 |
| XWN NW 04 HS 3/8 VA | S | 8 | PN 630 | 3/8" -18 NPT | 15.3 | 17.0 | 28.0 | 24.0 | 14 |
| XWN NW 04 HS 1/2 VA | S | 8 | PN 630 | 1/2" -14 NPT | 20.0 | 17.0 | 34.0 | 24.0 | 19 |
| XWN NW 06 HS 1/4 VA | S | 10 | PN 630 | 1/4" -18 NPT | 15.0 | 17.5 | 27.0 | 25.0 | 17 |
| XWN NW 06 HS VA | S | 10 | PN 630 | 3/8" -18 NPT | 12.0 | 17.5 | 28.0 | 25.0 | 17 |
| XWN NW 06 HS 1/2 VA | S | 10 | PN 630 | 1/2" -14 NPT | 20.0 | 21.5 | 32.0 | 29.0 | 19 |
| XWN NW 08 HS 1/4 VA | S | 12 | PN 630 | 1/4" -18 NPT | 15.0 | 21.5 | 27.0 | 29.0 | 17 |
| XWN NW 08 HS VA | S | 12 | PN 630 | 3/8" -18 NPT | 12.5 | 21.5 | 28.0 | 29.0 | 17 |
| XWN NW 08 HS 1/2 VA | S | 12 | PN 630 | 1/2" -14 NPT | 20.0 | 21.5 | 34.0 | 29.0 | 19 |
| XWN NW 10 HS VA | S | 14 | PN 630 | 1/2" -14 NPT | 18.0 | 22.0 | 34.0 | 30.0 | 19 |
| XWN NW 10 HS 3/8 VA | S | 14 | PN 630 | 3/8" -18 NPT | 15.3 | 22.0 | 30.0 | 30.0 | 19 |
| XWN NW 13 HS VA | S | 16 | PN 400 | 1/2" -14 NPT | 19.0 | 24.5 | 36.0 | 33.0 | 24 |
| XWN NW 13 HS 3/8 VA | S | 16 | PN 400 | 3/8" -18 NPT | 15.3 | 24.5 | 28.0 | 33.0 | 24 |
| XWN NW 13 HS 3/4 VA | S | 16 | PN 400 | 3/4" -14 NPT | 20.0 | 24.5 | 40.0 | 33.0 | 24 |
| XWN NW 16 HS VA | S | 20 | PN 400 | 3/4" -14 NPT | 20.0 | 26.6 | 42.0 | 37.0 | 27 |
| XWN NW 16 HS 1/2 VA | S | 20 | PN 400 | 1/2" -14 NPT | 20.0 | 26.5 | 42.0 | 37.0 | 27 |
| XWN NW 20 HS VA | S | 25 | PN 400 | 1" -11.5 NPT | 24.0 | 30.0 | 48.0 | 42.0 | 36 |
| XWN NW 25 HS VA | S | 30 | PN 400 | 1.1/4" -11.5 NPT | 25.5 | 35.5 | 54.0 | 49.0 | 41 |
| XWN NW 32 HS VA | S | 38 | PN 315 | 1.1/2" -11.5 NPT | 26.0 | 41.0 | 61.0 | 57.0 | 50 |
