Норма:
DIN 2353,ISO 8434-1
Конструкция:
Длинные
Материал:
Сталь
Модель:
Съемное редукционное соединение
Соединение 1:
Наружная резьба BSP, цилиндрическая
Соединение 2:
Внутренняя резьба BSP, цилиндрическая
Форма уплотнения 1:
Форма B
Защита поверхности:
Гальваническое покрытие
И наши менеджеры свяжутся с Вами в ближайшее время!

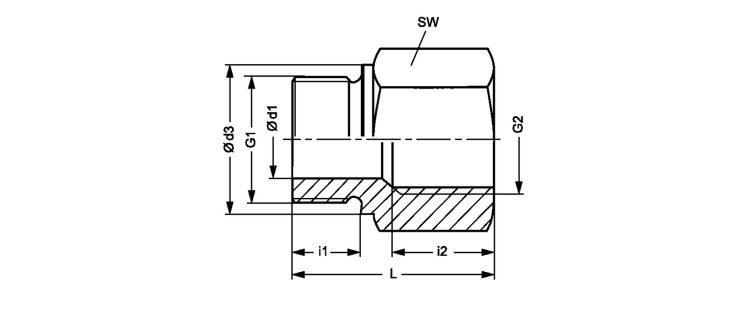

Съемное редукционное соединение, длинное
| Наименование | Ø d1 mm |
Betriebsdruck | G1 | G2 | Ø d3 mm |
i1 mm |
i2 mm |
L mm |
SW mm |
|---|---|---|---|---|---|---|---|---|---|
| RIL NW 03 06 | 4 | PN 400 | G 1/8" -28 | G 1/4" -19 | 14 | 8 | 17.0 | 31.0 | 19 |
| RIL NW 03 10 | 4 | PN 400 | G 1/8" -28 | G 3/8" -19 | 14 | 8 | 17.0 | 32.0 | 24 |
| RIL NW 06 03 | 5 | PN 400 | G 1/4" -19 | G 1/8" -28 | 18 | 12 | 12.0 | 28.0 | 19 |
| RIL NW 06 06 | 5 | PN 400 | G 1/4" -19 | G 1/4" -19 | 18 | 12 | 17.0 | 35.0 | 19 |
| RIL NW 06 10 | 5 | PN 400 | G 1/4" -19 | G 3/8" -19 | 18 | 12 | 17.0 | 36.0 | 24 |
| RIL NW 06 13 | 5 | PN 400 | G 1/4" -19 | G 1/2" -14 | 18 | 12 | 20.0 | 40.0 | 27 |
| RIL NW 06 20 | 5 | PN 315 | G 1/4" -19 | G 3/4" -14 | 18 | 12 | 22.0 | 43.0 | 36 |
| RIL NW 10 06 | 8 | PN 400 | G 3/8" -19 | G 1/4" -19 | 22 | 12 | 17.0 | 36.0 | 22 |
| RIL NW 10 10 | 8 | PN 400 | G 3/8" -19 | G 3/8" -19 | 22 | 12 | 17.0 | 35.5 | 24 |
| RIL NW 10 13 | 8 | PN 400 | G 3/8" -19 | G 1/2" -14 | 22 | 12 | 20.0 | 41.0 | 27 |
| RIL NW 10 20 | 8 | PN 315 | G 3/8" -19 | G 3/4" -14 | 22 | 12 | 22.0 | 44.0 | 36 |
| RIL NW 13 10 | 12 | PN 315 | G 1/2" -14 | G 3/8" -19 | 26 | 14 | 17.0 | 36.0 | 27 |
| RIL NW 13 13 | 12 | PN 315 | G 1/2" -14 | G 1/2" -14 | 26 | 14 | 20.0 | 42.0 | 27 |
| RIL NW 13 20 | 12 | PN 315 | G 1/2" -14 | G 3/4" -14 | 26 | 14 | 22.0 | 46.0 | 36 |
| RIL NW 13 25 | 12 | PN 315 | G 1/2" -14 | G 1" -11 | 26 | 14 | 24.5 | 49.0 | 41 |
| RIL NW 13 32 | 10 | PN 160 | G 1/2" -14 | G 1.1/4" -11 | 26 | 14 | 26.5 | 53.0 | 55 |
| RIL NW 20 13 | 16 | PN 315 | G 3/4" -14 | G 1/2" -14 | 32 | 16 | 20.0 | 41.0 | 32 |
| RIL NW 20 20 | 16 | PN 315 | G 3/4" -14 | G 3/4" -14 | 32 | 16 | 22.0 | 46.0 | 36 |
| RIL NW 20 25 | 16 | PN 315 | G 3/4" -14 | G 1" -11 | 32 | 16 | 24.5 | 51.0 | 41 |
| RIL NW 20 32 | 16 | PN 160 | G 3/4" -14 | G 1.1/4" -11 | 32 | 16 | 26.5 | 55.0 | 55 |
| RIL NW 20 40 | 16 | PN 160 | G 3/4" -14 | G 1.1/2" -11 | 32 | 16 | 28.5 | 57.0 | 60 |
| RIL NW 25 20 | 20 | PN 315 | G 1" -11 | G 3/4" -14 | 39 | 18 | 22.0 | 47.0 | 41 |
| RIL NW 25 32 | 20 | PN 160 | G 1" -11 | G 1.1/4" -11 | 39 | 18 | 26.5 | 57.0 | 55 |
| RIL NW 25 40 | 20 | PN 160 | G 1" -11 | G 1.1/2" -11 | 39 | 18 | 28.5 | 59.0 | 60 |
| RIL NW 32 25 | 25 | PN 160 | G 1.1/4" -11 | G 1" -11 | 49 | 20 | 24.5 | 52.0 | 50 |
| RIL NW 32 40 | 25 | PN 160 | G 1.1/4" -11 | G 1.1/2" -11 | 49 | 20 | 28.5 | 60.0 | 60 |
| RIL NW 40 32 | 32 | PN 160 | G 1.1/2" -11 | G 1.1/4" -11 | 55 | 22 | 26.5 | 58.0 | 55 |
| RIL NW 50 40 | 40 | PN 160 | G 2" -11 | G 1.1/2" -11 | 68 | 24 | 28.5 | 62.0 | 70 |
