AOVN VA
Норма:
DIN 2353,ISO 8434-1
Конструкция:
прямые
Материал:
нержавеющая сталь
Модель:
Ввертное резьбовое соединение
Соединение 1:
Наружная резьба NPT
Соединение 2:
Метрическая гаечная резьба
Форма уплотнения 1:
Резьбовое уплотнение
Форма уплотнения 2:
Наружный конус 24° с кольцом круглого сечения
И наши менеджеры свяжутся с Вами в ближайшее время!
Ввертное резьбовое соединение

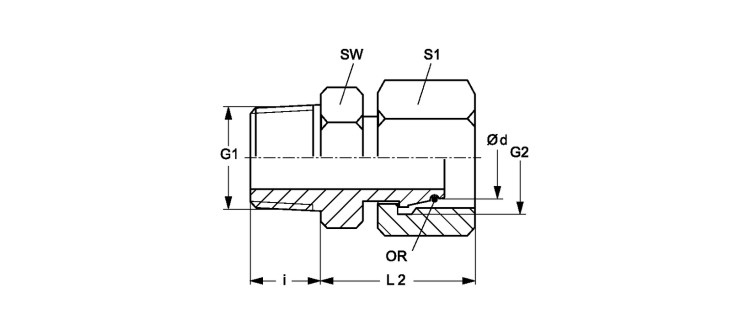

| Наименование | Серия | Betriebsdruck | Ø d mm |
G1 | G2 | i mm |
L2 mm |
SW mm |
S1 | OR |
|---|---|---|---|---|---|---|---|---|---|---|
| AOVN NW 04 L VA | L | PN 315 | 6 | 1/8" -27 NPT | M 12 x 1,5 | 10.0 | 31.5 | 11 | 14 | 4,0 x 1,5 |
| AOVN NW 04 L 1/4 VA | L | PN 315 | 6 | 1/4" -18 NPT | M 12 x 1,5 | 15.0 | 37.0 | 14 | 14 | 4,0 x 1,5 |
| AOVN NW 06 L VA | L | PN 315 | 8 | 1/4" -18 NPT | M 14 x 1.5 | 14.5 | 37.5 | 14 | 17 | 6,0 x 1,5 |
| AOVN NW 08 L VA | L | PN 315 | 10 | 1/4" -18 NPT | M 16 x 1.5 | 14.5 | 38.0 | 14 | 19 | 7,5 x 1,5 |
| AOVN NW 08 L 3/8 VA | L | PN 315 | 10 | 3/8" -18 NPT | M 16 x 1.5 | 15.3 | 43.0 | 19 | 19 | 7,5 x 1,5 |
| AOVN NW 10 L 1/4VA | L | PN 315 | 12 | 1/4" -18 NPT | M 18 x 1,5 | 15.0 | 40.0 | 17 | 22 | 9,0 x 1,5 |
| AOVN NW 10 L VA | L | PN 315 | 12 | 3/8" -18 NPT | M 18 x 1,5 | 14.5 | 40.0 | 19 | 22 | 9,0 x 1,5 |
| AOVN NW 10 L 1/2 VA | L | PN 315 | 12 | 1/2" -14 NPT | M 18 x 1,5 | 20.0 | 47.0 | 22 | 22 | 9,0 x 1,5 |
| AOVN NW 13 L VA | L | PN 315 | 15 | 1/2" -14 NPT | M 22 x 1.5 | 19.5 | 49.5 | 22 | 27 | 12,0 x 2,0 |
| AOVN NW 16 L VA | L | PN 315 | 18 | 1/2" -14 NPT | M 26 x 1,5 | 19.5 | 49.0 | 24 | 32 | 15,0 x 2,0 |
| AOVN NW 20 L 1/2 VA | L | PN 160 | 22 | 1/2" -14 NPT | M 30 x 2 | 20.0 | 50.0 | 27 | 36 | 20,0 x 2,0 |
| AOVN NW 20 L VA | L | PN 160 | 22 | 3/4" -14 NPT | M 30 x 2 | 19.5 | 52.0 | 27 | 36 | 20,0 x 2,0 |
| AOVN NW 25 L VA | L | PN 160 | 28 | 1" -11.5 NPT | M 36 x 2 | 24.5 | 61.0 | 36 | 41 | 26,0 x 2,0 |
| AOVN NW 32 L VA | L | PN 160 | 35 | 1.1/4" -11.5 NPT | M 45 x 2 | 25.0 | 65.5 | 46 | 50 | 32,0 x 2,5 |
| AOVN NW 40 L VA | L | PN 160 | 42 | 1.1/2" -11.5 NPT | M 52 x 2 | 26.0 | 68.5 | 50 | 60 | 38,0 x 2,5 |
| AOVN NW 03 S VA | S | PN 630 | 6 | 1/4" -18 NPT | M 14 x 1.5 | 14.5 | 37.5 | 14 | 17 | 4,0 x 1,5 |
| AOVN NW 04 S VA | S | PN 630 | 8 | 1/4" -18 NPT | M 16 x 1.5 | 14.5 | 38.0 | 14 | 19 | 6,0 x 1,5 |
| AOVN NW 06 S VA | S | PN 630 | 10 | 3/8" -18 NPT | M 18 x 1,5 | 14.5 | 40.5 | 19 | 22 | 7,5 x 1,5 |
| AOVN NW 08 S VA | S | PN 630 | 12 | 3/8" -18 NPT | M 20 x 1.5 | 14.5 | 42.0 | 19 | 24 | 9,0 x 1,5 |
| AOVN NW 08 S 1/4 VA | S | PN 630 | 12 | 1/4" -18 NPT | M 20 x 1.5 | 15.0 | 41.5 | 17 | 24 | 9,0 x 1,5 |
| AOVN NW 08 S 1/2 VA | S | PN 630 | 12 | 1/2" -14 NPT | M 20 x 1.5 | 20.0 | 48.0 | 22 | 24 | 9,0 x 1,5 |
| AOVN NW 10 S VA | S | PN 630 | 14 | 1/2" -14 NPT | M 22 x 1.5 | 19.5 | 50.5 | 22 | 27 | 10,0 x 2,0 |
| AOVN NW 13 S 3/8 VA | S | PN 400 | 16 | 3/8" -18 NPT | M 24 x 1.5 | 15.3 | 45.0 | 22 | 30 | 12,0 x 2,0 |
| AOVN NW 13 S VA | S | PN 400 | 16 | 1/2" -14 NPT | M 24 x 1.5 | 19.5 | 51.0 | 22 | 30 | 12,0 x 2,0 |
| AOVN NW 13 S 3/4 VA | S | PN 400 | 16 | 3/4" -14 NPT | M 24 x 1.5 | 20.0 | 49.0 | 27 | 30 | 12,0 x 2,0 |
| AOVN NW 16 S VA | S | PN 400 | 20 | 3/4" -14 NPT | M 30 x 2 | 19.5 | 54.0 | 27 | 36 | 16,3 x 2,4 |
| AOVN NW 20 S VA | S | PN 400 | 25 | 1" -11.5 NPT | M 36 x 2 | 24.5 | 63.5 | 36 | 46 | 20,3 x 2,4 |
| AOVN NW 25 S VA | S | PN 400 | 30 | 1.1/4" -11.5 NPT | M 42 x 2 | 25.0 | 70.5 | 46 | 50 | 25,3 x 2,4 |
| AOVN NW 32 S VA | S | PN 315 | 38 | 1.1/2" -11.5 NPT | M 52 x 2 | 26.0 | 73.5 | 50 | 60 | 33,3 x 2,4 |
