XNAH
Комплект поставки:
Штуцер (без накидной гайки и режущего кольца)
Конструкция:
прямые
Материал:
Сталь
Модель:
Редукционное резьбовое соединение, предварительно немонтированное
Соединение 1:
Патрубок предварительно немонтированный
Соединение 2:
Метрическая наружная резьба, цилиндрическая
Форма уплотнения 1:
Соединение с режущим кольцом
Форма уплотнения 2:
Внутренний конус 24°
Защита поверхности:
Гальваническое покрытие
И наши менеджеры свяжутся с Вами в ближайшее время!
Редукционное резьбовое соединение, предварительно немонтированное

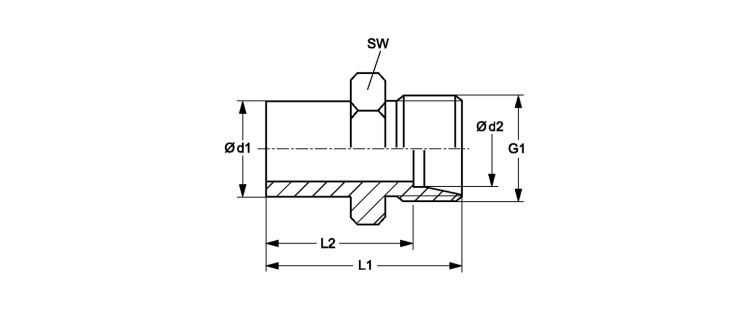

| Наименование | Серия | Betriebsdruck | Ø d1 mm |
Ø d2 mm |
G1 | L1 mm |
L2 mm |
SW mm |
|---|---|---|---|---|---|---|---|---|
| XNAH NW 04 LL 04 | L LL | PN 100 | 6 | 4 | M 8 x 1 | 28.5 | 24.0 | 11 |
| XNAH NW 06 LL 04 | L LL | PN 100 | 8 | 4 | M 8 x 1 | 28.5 | 24.5 | 12 |
| XNAH NW 08 LL 04 | L LL | PN 100 | 10 | 4 | M 8 x 1 | 28.5 | 24.5 | 11 |
| XNAH NW 10 LL 04 | L LL | PN 100 | 12 | 4 | M 8 x 1 | 28.5 | 24.5 | 11 |
| XNAH NW 06 L 04 | L | PN 315 | 8 | 6 | M 12 x 1,5 | 33.5 | 26.5 | 12 |
| XNAH NW 08 L 04 | L | PN 315 | 10 | 6 | M 12 x 1,5 | 34.0 | 27.0 | 12 |
| XNAH NW 08 L 06 | L | PN 315 | 10 | 8 | M 14 x 1.5 | 34.5 | 27.5 | 14 |
| XNAH NW 10 L 04 | L | PN 315 | 12 | 6 | M 12 x 1,5 | 35.0 | 28.0 | 14 |
| XNAH NW 10 L 06 | L | PN 315 | 12 | 8 | M 14 x 1.5 | 36.0 | 29.0 | 14 |
| XNAH NW 10 L 08 | L | PN 315 | 12 | 10 | M 16 x 1.5 | 37.0 | 30.0 | 17 |
| XNAH NW 10 L | L | PN 315 | 12 | 12 | M 18 x 1,5 | 38.0 | 31.0 | 19 |
| XNAH NW 13 L 04 | L | PN 315 | 15 | 6 | M 12 x 1,5 | 36.0 | 29.0 | 17 |
| XNAH NW 13 L 06 | L | PN 315 | 15 | 8 | M 14 x 1.5 | 36.0 | 29.0 | 17 |
| XNAH NW 13 L 08 | L | PN 315 | 15 | 10 | M 16 x 1.5 | 37.0 | 30.0 | 17 |
| XNAH NW 13 L 10 | L | PN 315 | 15 | 12 | M 18 x 1,5 | 38.0 | 31.0 | 19 |
| XNAH NW 13 L | L | PN 315 | 15 | 15 | M 22 x 1.5 | 39.0 | 32.0 | 24 |
| XNAH NW 16 L 04 | L | PN 315 | 18 | 6 | M 12 x 1,5 | 37.0 | 30.0 | 19 |
| XNAH NW 16 L 06 | L | PN 315 | 18 | 8 | M 14 x 1.5 | 38.0 | 31.0 | 19 |
| XNAH NW 16 L 08 | L | PN 315 | 18 | 10 | M 16 x 1.5 | 39.0 | 32.0 | 19 |
| XNAH NW 16 L 10 | L | PN 315 | 18 | 12 | M 18 x 1,5 | 40.0 | 33.0 | 19 |
| XNAH NW 16 L 13 | L | PN 315 | 18 | 15 | M 22 x 1.5 | 39.5 | 32.5 | 24 |
| XNAH NW 20 L 04 | L | PN 160 | 22 | 6 | M 14 x 1.5 | 39.0 | 32.0 | 24 |
| XNAH NW 20 L 06 | L | PN 160 | 22 | 8 | M 16 x 1.5 | 40.0 | 33.0 | 24 |
| XNAH NW 20 L 08 | L | PN 160 | 22 | 10 | M 18 x 1,5 | 42.0 | 35.0 | 24 |
| XNAH NW 20 L 10 | L | PN 160 | 22 | 12 | M 18 x 1,5 | 42.0 | 35.0 | 24 |
| XNAH NW 20 L 13 | L | PN 160 | 22 | 15 | M 22 x 1.5 | 43.0 | 36.0 | 24 |
| XNAH NW 20 L 16 | L | PN 160 | 22 | 18 | M 26 x 1,5 | 44.0 | 36.5 | 27 |
| XNAH NW 25 L 04 | L | PN 160 | 28 | 6 | M 12 x 1,5 | 41.0 | 34.0 | 30 |
| XNAH NW 25 L 06 | L | PN 160 | 28 | 8 | M 14 x 1.5 | 41.0 | 34.0 | 30 |
| XNAH NW 25 L 08 | L | PN 160 | 28 | 10 | M 16 x 1.5 | 42.0 | 35.0 | 30 |
| XNAH NW 25 L 10 | L | PN 160 | 28 | 12 | M 18 x 1,5 | 43.0 | 36.0 | 30 |
| XNAH NW 25 L 13 | L | PN 160 | 28 | 15 | M 22 x 1.5 | 44.0 | 37.0 | 30 |
| XNAH NW 25 L 16 | L | PN 160 | 28 | 18 | M 26 x 1,5 | 45.0 | 37.5 | 30 |
| XNAH NW 25 L 20 | L | PN 160 | 28 | 22 | M 30 x 2 | 47.0 | 39.5 | 32 |
| XNAH NW 32 L 04 | L | PN 160 | 35 | 6 | M 12 x 1,5 | 47.0 | 40.0 | 36 |
| XNAH NW 32 L 06 | L | PN 160 | 35 | 8 | M 14 x 1.5 | 47.0 | 40.0 | 36 |
| XNAH NW 32 L 08 | L | PN 160 | 35 | 10 | M 16 x 1.5 | 48.0 | 41.0 | 36 |
| XNAH NW 32 L 10 | L | PN 160 | 35 | 12 | M 18 x 1,5 | 49.0 | 42.0 | 36 |
| XNAH NW 32 L 13 | L | PN 160 | 35 | 15 | M 22 x 1.5 | 50.0 | 43.0 | 36 |
| XNAH NW 32 L 16 | L | PN 160 | 35 | 18 | M 26 x 1,5 | 49.5 | 42.0 | 36 |
| XNAH NW 32 L 20 | L | PN 160 | 35 | 22 | M 30 x 2 | 53.0 | 45.5 | 36 |
| XNAH NW 32 L 25 | L | PN 160 | 35 | 28 | M 36 x 2 | 54.0 | 46.5 | 41 |
| XNAH NW 40 L 04 | L | PN 160 | 42 | 6 | M 12 x 1,5 | 49.5 | 42.5 | 46 |
| XNAH NW 40 L 06 | L | PN 160 | 42 | 8 | M 14 x 1.5 | 49.5 | 42.5 | 46 |
| XNAH NW 40 L 08 | L | PN 160 | 42 | 10 | M 16 x 1.5 | 49.0 | 42.0 | 46 |
| XNAH NW 40 L 10 | L | PN 160 | 42 | 12 | M 18 x 1,5 | 50.0 | 43.0 | 46 |
| XNAH NW 40 L 13 | L | PN 160 | 42 | 15 | M 22 x 1.5 | 52.0 | 45.0 | 46 |
| XNAH NW 40 L 16 | L | PN 160 | 42 | 18 | M 26 x 1,5 | 51.5 | 44.0 | 46 |
| XNAH NW 40 L 20 | L | PN 160 | 42 | 22 | M 30 x 2 | 53.5 | 46.0 | 46 |
| XNAH NW 40 L 25 | L | PN 160 | 42 | 28 | M 36 x 2 | 55.0 | 47.5 | 46 |
| XNAH NW 40 L 32 | L | PN 160 | 42 | 35 | M 45 x 2 | 58.0 | 47.5 | 46 |
| XNAH NW 16 L 13 S | L S | PN 315 | 18 | 16 | M 24 x 1.5 | 40.0 | 36.0 | 27 |
| XNAH NW 20 L 13 S | L S | PN 160 | 22 | 16 | M 24 x 1.5 | 43.0 | 38.0 | 27 |
| XNAH NW 20 L 16 S | L S | PN 160 | 22 | 20 | M 30 x 2 | 45.0 | 38.0 | 32 |
| XNAH NW 25 L 13 S | L S | PN 160 | 28 | 16 | M 24 x 1.5 | 45.0 | 39.0 | 32 |
| XNAH NW 25 L 20 S | L S | PN 160 | 28 | 25 | M 36 x 2 | 50.0 | 40.5 | 41 |
| XNAH NW 04 S 03 | S | PN 630 | 8 | 6 | M 14 x 1.5 | 37.0 | 30.0 | 17 |
| XNAH NW 06 S 03 | S | PN 630 | 10 | 6 | M 14 x 1.5 | 39.0 | 32.0 | 17 |
| XNAH NW 06 S 04 | S | PN 630 | 10 | 8 | M 16 x 1.5 | 34.0 | 31.0 | 17 |
| XNAH NW 08 S 03 | S | PN 630 | 12 | 6 | M 14 x 1.5 | 39.0 | 32.0 | 17 |
| XNAH NW 08 S 04 | S | PN 630 | 12 | 8 | M 16 x 1.5 | 41.0 | 34.0 | 17 |
| XNAH NW 08 S 06 | S | PN 630 | 12 | 10 | M 18 x 1,5 | 41.0 | 33.5 | 19 |
| XNAH NW 10 S 03 | S | PN 630 | 14 | 6 | M 14 x 1.5 | 42.0 | 35.0 | 17 |
| XNAH NW 10 S 04 | S | PN 630 | 14 | 8 | M 16 x 1.5 | 44.0 | 37.0 | 17 |
| XNAH NW 10 S 06 | S | PN 630 | 14 | 10 | M 18 x 1,5 | 44.0 | 36.5 | 19 |
| XNAH NW 10 S 08 | S | PN 630 | 14 | 12 | M 20 x 1.5 | 46.0 | 38.5 | 22 |
| XNAH NW 13 S 03 | S | PN 630 | 16 | 6 | M 14 x 1.5 | 42.0 | 35.0 | 17 |
| XNAH NW 13 S 04 | S | PN 630 | 16 | 8 | M 16 x 1.5 | 44.0 | 37.0 | 17 |
| XNAH NW 13 S 06 | S | PN 630 | 16 | 10 | M 18 x 1,5 | 44.0 | 36.5 | 19 |
| XNAH NW 13 S 08 | S | PN 630 | 16 | 12 | M 20 x 1.5 | 46.0 | 38.5 | 22 |
| XNAH NW 13 S 10 | S | PN 630 | 16 | 14 | M 22 x 1.5 | 48.0 | 40.0 | 24 |
| XNAH NW 16 S 03 | S | PN 400 | 20 | 6 | M 14 x 1.5 | 49.0 | 42.0 | 22 |
| XNAH NW 16 S 04 | S | PN 400 | 20 | 8 | M 16 x 1.5 | 49.0 | 42.0 | 22 |
| XNAH NW 16 S 06 | S | PN 400 | 20 | 10 | M 18 x 1,5 | 50.0 | 42.5 | 22 |
| XNAH NW 16 S 08 | S | PN 400 | 20 | 12 | M 20 x 1.5 | 51.0 | 43.5 | 22 |
| XNAH NW 16 S 10 | S | PN 400 | 20 | 14 | M 22 x 1.5 | 53.0 | 45.0 | 24 |
| XNAH NW 16 S 13 | S | PN 400 | 20 | 16 | M 24 x 1.5 | 53.0 | 44.5 | 27 |
| XNAH NW 20 S 03 | S | PN 400 | 25 | 6 | M 14 x 1.5 | 51.0 | 44.0 | 27 |
| XNAH NW 20 S 04 | S | PN 400 | 25 | 8 | M 16 x 1.5 | 51.0 | 44.0 | 27 |
| XNAH NW 20 S 06 | S | PN 400 | 25 | 10 | M 18 x 1,5 | 51.0 | 43.5 | 27 |
| XNAH NW 20 S 08 | S | PN 400 | 25 | 12 | M 20 x 1.5 | 53.0 | 44.5 | 27 |
| XNAH NW 20 S 10 | S | PN 400 | 25 | 14 | M 22 x 1.5 | 55.0 | 47.0 | 27 |
| XNAH NW 20 S 13 | S | PN 400 | 25 | 16 | M 24 x 1.5 | 56.0 | 47.5 | 27 |
| XNAH NW 20 S 16 | S | PN 400 | 25 | 20 | M 30 x 2 | 59.0 | 48.5 | 32 |
| XNAH NW 25 S 03 | S | PN 400 | 30 | 6 | M 14 x 1.5 | 59.0 | 52.0 | 32 |
| XNAH NW 25 S 04 | S | PN 400 | 30 | 8 | M 16 x 1.5 | 59.0 | 52.0 | 32 |
| XNAH NW 25 S 06 | S | PN 400 | 30 | 10 | M 18 x 1,5 | 59.0 | 51.5 | 32 |
| XNAH NW 25 S 08 | S | PN 400 | 30 | 12 | M 20 x 1.5 | 59.0 | 51.5 | 32 |
| XNAH NW 25 S 10 | S | PN 400 | 30 | 14 | M 22 x 1.5 | 58.0 | 50.0 | 32 |
| XNAH NW 25 S 13 | S | PN 400 | 30 | 16 | M 24 x 1.5 | 61.0 | 52.5 | 32 |
| XNAH NW 25 S 16 | S | PN 400 | 30 | 20 | M 30 x 2 | 60.0 | 49.5 | 32 |
| XNAH NW 25 S 20 | S | PN 400 | 30 | 25 | M 36 x 2 | 69.0 | 57.0 | 41 |
| XNAH NW 32 S 03 | S | PN 315 | 38 | 6 | M 14 x 1.5 | 62.0 | 55.0 | 41 |
| XNAH NW 32 S 04 | S | PN 315 | 38 | 8 | M 16 x 1.5 | 62.0 | 55.0 | 41 |
| XNAH NW 32 S 06 | S | PN 315 | 38 | 10 | M 18 x 1,5 | 62.0 | 54.5 | 41 |
| XNAH NW 32 S 08 | S | PN 315 | 38 | 12 | M 20 x 1.5 | 62.0 | 54.5 | 41 |
| XNAH NW 32 S 10 | S | PN 315 | 38 | 14 | M 22 x 1.5 | 65.0 | 57.0 | 41 |
| XNAH NW 32 S 13 | S | PN 315 | 38 | 16 | M 24 x 1.5 | 64.0 | 55.5 | 41 |
| XNAH NW 32 S 16 | S | PN 315 | 38 | 20 | M 30 x 2 | 67.0 | 56.5 | 41 |
| XNAH NW 32 S 20 | S | PN 315 | 38 | 25 | M 36 x 2 | 72.0 | 60.0 | 41 |
| XNAH NW 32 S 25 | S | PN 315 | 38 | 30 | M 42 x 2 | 74.0 | 60.5 | 46 |
| XNAH NW 13 S 13 L | S L | PN 315 | 16 | 15 | M 22 x 1.5 | 39.0 | 37.0 | 24 |
| XNAH NW 16 S 13 L | S L | PN 315 | 20 | 15 | M 22 x 1.5 | 43.0 | 43.0 | 24 |
| XNAH NW 16 S 16 L | S L | PN 315 | 20 | 18 | M 26 x 1,5 | 43.0 | 42.5 | 27 |
| XNAH NW 20 S 20 L | S L | PN 160 | 25 | 22 | M 30 x 2 | 47.5 | 48.5 | 32 |
| XNAH NW 25 S 25 L | S L | PN 160 | 30 | 28 | M 36 x 2 | 53.0 | 50.5 | 41 |
