UEM MG
Норма:
DIN 3870
Материал:
Латунь
Модель:
Накидная гайка
Соединение 1:
Метрическая гаечная резьба
И наши менеджеры свяжутся с Вами в ближайшее время!

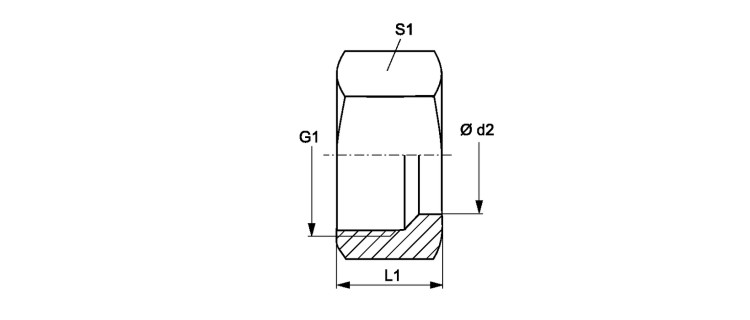

Накидная гайка MG
| Наименование | Серия | Наружный Ø трубы mm |
Ø d2 mm |
G1 | L1 mm |
S1 |
|---|---|---|---|---|---|---|
| UEM 04 LL MG | LL | 4 | 4 | M 8 x 1 | 11.0 | 10 |
| UEM 05 LL MG | LL | 5 | 5 | M 10 x 1 | 11.5 | 12 |
| UEM 06 LL MG | LL | 6 | 6 | M 10 x 1 | 11.5 | 12 |
| UEM 08 LL MG | LL | 8 | 8 | M 12 x 1 | 12.0 | 14 |
| UEM 10 LL MG | LL | 10 | 10 | M 14 x 1 | 12.5 | 17 |
| UEM 12 LL MG | LL | 12 | 12 | M 16 x 1 | 13.0 | 19 |
| UEM NW 04 L MG | L | 6 | 6 | M 12 x 1,5 | 14.5 | 14 |
| UEM NW 06 L MG | L | 8 | 8 | M 14 x 1.5 | 14.5 | 17 |
| UEM NW 08 L MG | L | 10 | 10 | M 16 x 1.5 | 15.5 | 19 |
| UEM NW 10 L MG | L | 12 | 12 | M 18 x 1,5 | 15.5 | 22 |
| UEM NW 13 L MG | L | 15 | 15 | M 22 x 1.5 | 17.0 | 27 |
| UEM NW 16 L MG | L | 18 | 18 | M 26 x 1,5 | 18.0 | 32 |
| UEM NW 20 L MG | L | 22 | 22 | M 30 x 2 | 20.0 | 36 |
| UEM NW 25 L MG | L | 28 | 28 | M 36 x 2 | 21.0 | 41 |
| UEM NW 32 L MG | L | 35 | 35 | M 45 x 2 | 24.0 | 50 |
| UEM NW 40 L MG | L | 42 | 42 | M 52 x 2 | 24.0 | 60 |
| UEM NW 03 S MG | S | 6 | 6 | M 14 x 1.5 | 16.5 | 17 |
| UEM NW 04 S MG | S | 8 | 8 | M 16 x 1.5 | 16.5 | 19 |
| UEM NW 06 S MG | S | 10 | 10 | M 18 x 1,5 | 17.5 | 22 |
| UEM NW 08 S MG | S | 12 | 12 | M 20 x 1.5 | 17.5 | 24 |
| UEM NW 10 S MG | S | 14 | 14 | M 22 x 1.5 | 20.5 | 27 |
| UEM NW 13 S MG | S | 16 | 16 | M 24 x 1.5 | 20.5 | 30 |
| UEM NW 16 S MG | S | 20 | 20 | M 30 x 2 | 24.0 | 36 |
| UEM NW 20 S MG | S | 25 | 25 | M 36 x 2 | 27.0 | 46 |
| UEM NW 25 S MG | S | 30 | 30 | M 42 x 2 | 29.0 | 50 |
| UEM NW 32 S MG | S | 38 | 38 | M 52 x 2 | 32.5 | 60 |
