RD FEDER PT
Материал:
Сталь
Модель:
Пружина для обратного клапана
Защита поверхности:
Гальваническое покрытие
И наши менеджеры свяжутся с Вами в ближайшее время!
Пружина для обратного клапана

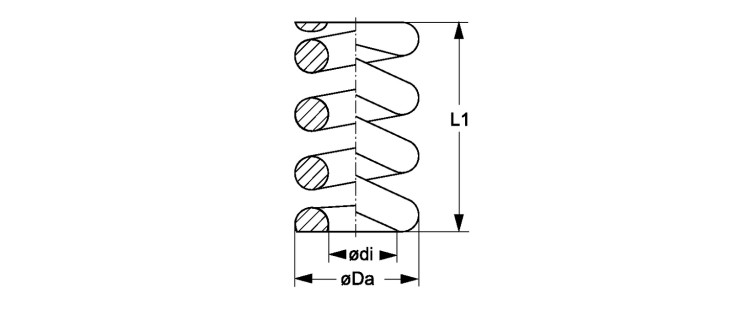

| Наименование | für Baureihe | Размыкающее давление nom. bar |
Ø Da mm |
Baugröße | Ø di mm |
L1 mm |
|---|---|---|---|---|---|---|
| RD FEDER 01-0.2 PT | 06L; 06S; 08S | 0.2 | 4.2 | 1 | 3.6 | 13.1 |
| RD FEDER 01-0.5 PT | 06L; 06S; 08S | 0.5 | 4.6 | 1 | 3.6 | 9.2 |
| RD FEDER 01-2.0 PT | 06L; 06S; 08S | 2.0 | 4.8 | 1 | 3.6 | 10.8 |
| RD FEDER 01-3.0 PT | 06L; 06S; 08S | 3.0 | 4.8 | 1 | 3.6 | 12.4 |
| RD FEDER 01-5.0 PT | 06L; 06S; 08S | 5.0 | 5.0 | 1 | 3.6 | 10.1 |
| RD FEDER 02-0.2 PT | 08L; 10S | 0.2 | 5.3 | 2 | 4.5 | 15.2 |
| RD FEDER 02-0.5 PT | 08L; 10S | 0.5 | 5.7 | 2 | 4.5 | 13.2 |
| RD FEDER 02-2.0 PT | 08L; 10S | 2.0 | 5.9 | 2 | 4.5 | 16.3 |
| RD FEDER 02-3.0 PT | 08L; 10S | 3.0 | 5.9 | 2 | 4.5 | 19.0 |
| RD FEDER 02-5.0 PT | 08L; 10S | 5.0 | 6.1 | 2 | 4.5 | 17.8 |
| RD FEDER 03-0.2 PT | 10L; 12S | 0.2 | 7.5 | 3 | 6.3 | 17.5 |
| RD FEDER 03-0.5 PT | 10L; 12S | 0.5 | 7.7 | 3 | 6.3 | 19.5 |
| RD FEDER 03-2.0 PT | 10L; 12S | 2.0 | 8.1 | 3 | 6.3 | 21.6 |
| RD FEDER 03-3.0 PT | 10L; 12S | 3.0 | 8.3 | 3 | 6.3 | 21.8 |
| RD FEDER 03-5.0 PT | 10L; 12S | 5.0 | 8.7 | 3 | 6.3 | 19.5 |
| RD FEDER 04-0.2 PT | 12L; 14S | 0.2 | 9.6 | 4 | 8.3 | 28.2 |
| RD FEDER 04-0.5 PT | 12L; 14S | 0.5 | 10.1 | 4 | 8.3 | 22.5 |
| RD FEDER 04-2.0 PT | 12L; 14S | 2.0 | 10.7 | 4 | 8.3 | 25.0 |
| RD FEDER 04-3.0 PT | 12L; 14S | 3.0 | 10.9 | 4 | 8.3 | 24.7 |
| RD FEDER 04-5.0 PT | 12L; 14S | 5.0 | 10.9 | 4 | 8.3 | 29.4 |
| RD FEDER 05-0.2 PT | 15L; 16S | 0.2 | 10.4 | 5 | 8.8 | 25.9 |
| RD FEDER 05-0.5 PT | 15L; 16S | 0.5 | 11.0 | 5 | 8.8 | 24.3 |
| RD FEDER 05-2.0 PT | 15L; 16S | 2.0 | 11.4 | 5 | 8.8 | 29.0 |
| RD FEDER 05-3.0 PT | 15L; 16S | 3.0 | 11.6 | 5 | 8.8 | 28.9 |
| RD FEDER 05-5.0 PT | 15L; 16S | 5.0 | 11.8 | 5 | 8.8 | 30.8 |
| RD FEDER 06-0.2 PT | 18L; 20S | 0.2 | 13.5 | 6 | 11.3 | 29.9 |
| RD FEDER 06-0.5 PT | 18L; 20S | 0.5 | 14.1 | 6 | 11.3 | 30.1 |
| RD FEDER 06-2.0 PT | 18L; 20S | 2.0 | 14.7 | 6 | 11.3 | 35.2 |
| RD FEDER 06-3.0 PT | 18L; 20S | 3.0 | 15.1 | 6 | 11.3 | 33.6 |
| RD FEDER 06-5.0 PT | 18L; 20S | 5.0 | 15.2 | 6 | 11.3 | 40.2 |
| RD FEDER 07-0.2 PT | 22L; 25S | 0.2 | 16.9 | 7 | 14.3 | 38.0 |
| RD FEDER 07-0.5 PT | 22L; 25S | 0.5 | 17.7 | 7 | 14.3 | 36.1 |
| RD FEDER 07-2.0 PT | 22L; 25S | 2.0 | 18.7 | 7 | 14.3 | 39.0 |
| RD FEDER 07-3.0 PT | 22L; 25S | 3.0 | 18.7 | 7 | 14.3 | 44.4 |
| RD FEDER 07-5.0 PT | 22L; 25S | 5.0 | 18.7 | 7 | 14.3 | 54.6 |
| RD FEDER 08-0.2 PT | 28L; 30S | 0.2 | 20.9 | 8 | 17.9 | 46.8 |
| RD FEDER 08-0.5 PT | 28L; 30S | 0.5 | 21.9 | 8 | 17.9 | 46.6 |
| RD FEDER 08-2.0 PT | 28L; 30S | 2.0 | 23.5 | 8 | 17.9 | 46.8 |
| RD FEDER 08-3.0 PT | 28L; 30S | 3.0 | 23.5 | 8 | 17.9 | 53.2 |
| RD FEDER 08-5.0 PT | 28L; 30S | 5.0 | 24.0 | 8 | 18.0 | 59.3 |
| RD FEDER 09-0.2 PT | 35L; 42L; 38S | 0.2 | 23.9 | 9 | 20.5 | 62.5 |
| RD FEDER 09-0.5 PT | 35L; 42L; 38S | 0.5 | 24.9 | 9 | 20.5 | 57.4 |
| RD FEDER 09-2.0 PT | 35L; 42L; 38S | 2.0 | 26.1 | 9 | 20.5 | 64.8 |
| RD FEDER 09-3.0 PT | 35L; 42L; 38S | 3.0 | 26.5 | 9 | 20.5 | 70.0 |
| RD FEDER 09-5.0 PT | 35L; 42L; 38S | 5.0 | 27.1 | 9 | 20.5 | 66.1 |
