G HB VA
Конструкция:
прямые
Материал:
нержавеющая сталь
Модель:
Соединительный штуцер
Соединение 1:
Наружная резьба BSP, цилиндрическая
Соединение 2:
Наружная резьба BSP, цилиндрическая
Форма уплотнения 1:
Внутренний конус 60°
Форма уплотнения 2:
Внутренний конус 60°
И наши менеджеры свяжутся с Вами в ближайшее время!

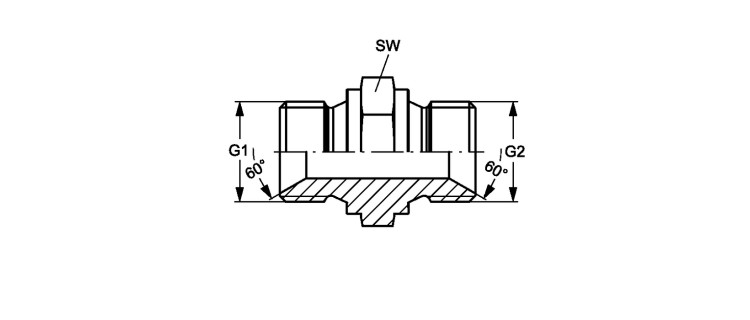

Соединительный штуцер
| Наименование | G1 | G2 | SW mm |
|---|---|---|---|
| G HB 02 VA | G 1/8" -28 | G 1/8" -28 | 14 |
| G HB 02 HB 04 VA | G 1/8" -28 | G 1/4" -19 | 19 |
| G HB 02 HB 06 VA | G 1/8" -28 | G 3/8" -19 | 22 |
| G HB 04 VA | G 1/4" -19 | G 1/4" -19 | 19 |
| G HB 04 HB 06 VA | G 1/4" -19 | G 3/8" -19 | 22 |
| G HB 04 HB 08 VA | G 1/4" -19 | G 1/2" -14 | 27 |
| G HB 04 HB 12 VA | G 1/4" -19 | G 3/4" -14 | 32 |
| G HB 06 VA | G 3/8" -19 | G 3/8" -19 | 22 |
| G HB 06 HB 08 VA | G 3/8" -19 | G 1/2" -14 | 27 |
| G HB 06 HB 10 VA | G 3/8" -19 | G 5/8" -14 | 32 |
| G HB 06 HB 12 VA | G 3/8" -19 | G 3/4" -14 | 32 |
| G HB 06 HB 16 VA | G 3/8" -19 | G 1" -11 | 41 |
| G HB 08 VA | G 1/2" -14 | G 1/2" -14 | 27 |
| G HB 08 HB 10 VA | G 1/2" -14 | G 5/8" -14 | 30 |
| G HB 08 HB 12 VA | G 1/2" -14 | G 3/4" -14 | 32 |
| G HB 08 HB 16 VA | G 1/2" -14 | G 1" -11 | 41 |
| G HB 08 HB 20 VA | G 1/2" -14 | G 1.1/4" -11 | 50 |
| G HB 10 VA | G 5/8" -14 | G 5/8" -14 | 30 |
| G HB 10 HB 12 VA | G 5/8" -14 | G 3/4" -14 | 32 |
| G HB 12 VA | G 3/4" -14 | G 3/4" -14 | 32 |
| G HB 12 HB 16 VA | G 3/4" -14 | G 1" -11 | 41 |
| G HB 12 HB 20 VA | G 3/4" -14 | G 1.1/4" -11 | 50 |
| G HB 12 HB 24 VA | G 3/4" -14 | G 1.1/2" -11 | 55 |
| G HB 16 VA | G 1" -11 | G 1" -11 | 41 |
| G HB 16 HB 20 VA | G 1" | G 1.1/4" -11 | 50 |
| G HB 16 HB 24 VA | G 1" -11 | G 1.1/2" -11 | 55 |
| G HB 16 HB 32 VA | G 1" -11 | G 2" -11 | 70 |
| G HB 20 VA | G 1.1/4" -11 | G 1.1/4" -11 | 50 |
| G HB 20 HB 24 VA | G 1.1/4" -11 | G 1.1/2" -11 | 55 |
| G HB 20 HB 32 VA | G 1.1/4" -11 | G 2" -11 | 70 |
| G HB 24 VA | G 1.1/2" -11 | G 1.1/2" -11 | 55 |
| G HB 24 HB 32 VA | G 1.1/2" -11 | G 2" -11 | 70 |
| G HB 32 VA | G 2" -11 | G 2" -11 | 70 |
